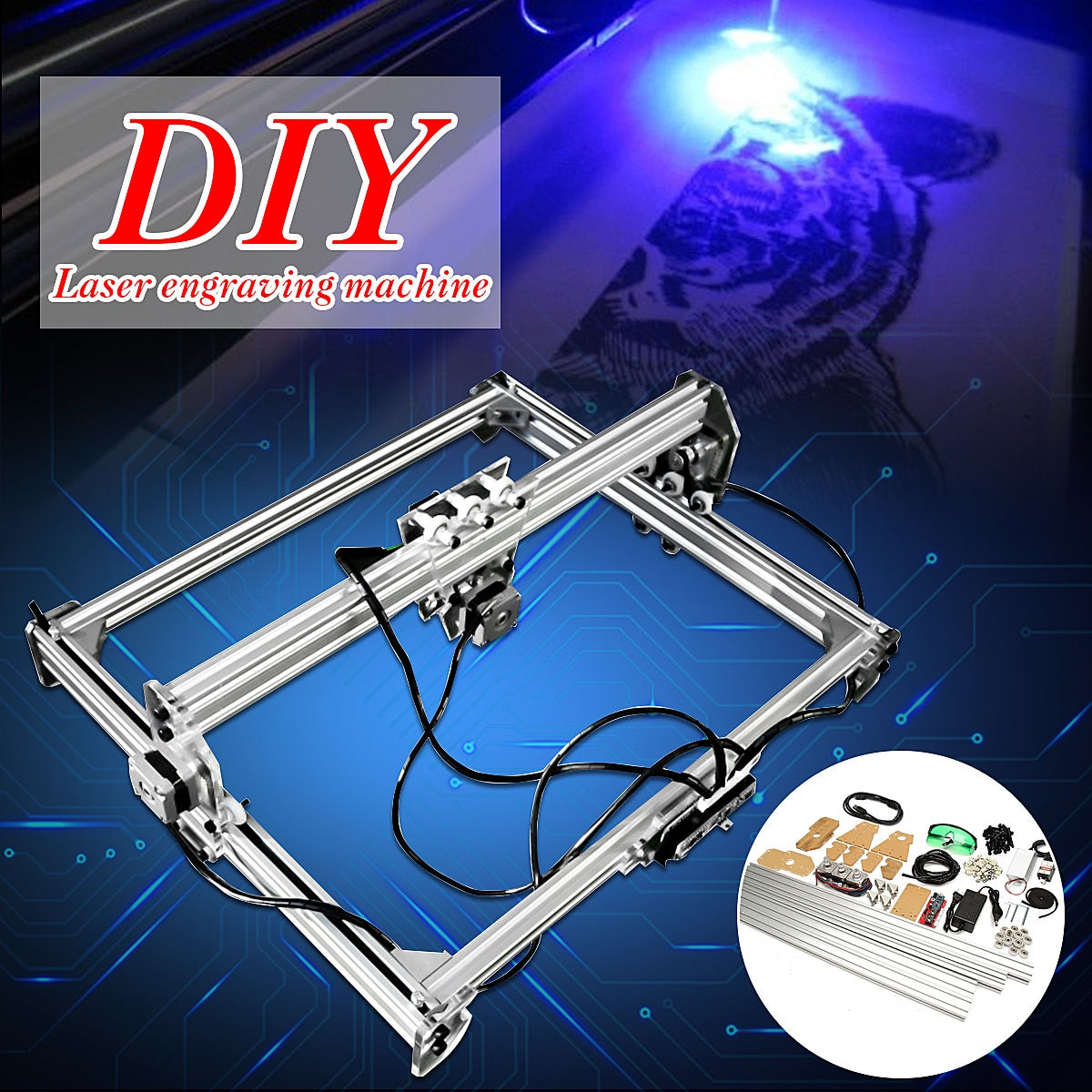

This 3000mW DIY desktop blue laser engraving machine is ideal for amateur

laser engraving usage with grayscale printing,low-light positioning and freedom

positioning functions.It only need you to connect it to the computer, then you can

print any pictures your like with your own creativity.



Specifications:

Material:stainless steel and acrylic

Working Voltage:DC 12V

Laser Power:3000mW

Drive system: stepper motor(step accuracy: 0.1mm)

Engraving speed: 200-2000m/min

Cutting speed: 1-100ms/pixels

Operating temperature: -10 - 45 degrees

Engraving Area:65x50cm(maximum)

Size:72x63cm

Cooling mode: air cooling

Whole machine weight: 5kg or so

Machine net weight: About 4kg

Control software: benbox software support power can be adjusted, weak light positioning



Accessories: Aluminum 4, 5mm axis, import acrylic accessories 1 sets, control panel kits, stepper motors, screws, accessories, tools, 1 boxes, power supply, USB wire, anti laser glasses, laser module,



Engraving Material Note:

1.can engraving materials: wood,bamboo,plastic,paper,leather,bank card,rubber

2.can not engraving material:metal,stone,ceramic,shell,light-reflecting material,

transparent material



The product has a lifespan of 8,000 hours, it can last for 1 hour, and then it takes 10 minutes to rest.

It can cut the maximum thickness of the product is about 1mm cutting board, 2mm plywood, 1mm mdf, 2mm PVC board, 4mm foam, 3mm paper.



Cutting Material:

It can only cut foam,paper,thin leather material.



Note:

1.In the process of using, please wear professional protective glasses

2.Forbid children to play

3.Suggested that the laser light in the case of-focus, the power is too strong, do not use strong

light to illuminate the skin

4. the use of flammable objects or gases in order to causing a fire/explosion

5.Don't update the firmware. Can not change the original firmware.



This link is about how to assemble the engraving machine.

https://youtu.be/fdgIeWwFBcM





There is already a video on this link for assembling and using this product. However, every customer who purchases this product needs to install the software, which can be downloaded from this link.

This link describes the assembly of product, software and use:

https://mega.nz/#F!wDxgFYAI!DsqvK4BFoLm-a2KWmQDKJQ



Notice: If you need the instruction of the machine, please contact us freely, and we will send it to you by e-mail.

Package includes:

1x DIY Desktop Mini Laser Cutting/Engraving Machine (assembly kit)

1x user manual

1x Product List
